500 Series

ITA500 series

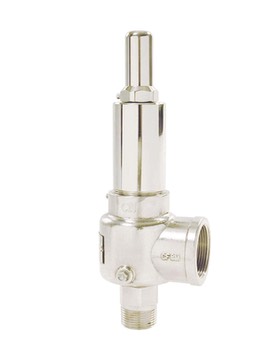

Valvola di sicurezza ASME. Disponibile in bronzo, acciaio al carbonio o acciaio inox. Adatta per una vasta gamma di applicazioni come vapore, aria, gas e liquidi. Elevata capacità di progettazione degli ugelli, disponibile a passaggio totale con sede metallica, PCTFE o O-ring. La regolazione degli spurghi e la tenuta del corpo alla contropressione riducono al minimo le fuoriuscite e le perdite di prodotto quando la valvola sta funzionando.

ASME Section VIII Aria, vapore e liquido da 1/2 a 2 NPT. Gamma standard di pressione da 5 a 1200 psig ad un massimo di 426°C (800°F)

CE (logo)

LogoPDF
-------------------------------


Versatile safety relief valve available in bronze, carbon steel or all stainless steel construction, suitable for a wide range of steam, air, gas and liquid applications. High capacity full nozzle design is available with metal to metal, PCTFE or elastomer O-ring seating. Short tuned blowdown and backpressure tight body minimizes fugitive emissions and product losses in the event of valve operation.

ASME Section VIII Air, Steam, and Liquid service Sizes 1/2” through 2” NPT Factory set pressure range 5-1200 psig @ 800°F max. (See press. / temp. limit chart below for specific ratings for each model).

APPLICATIONS:

• Pressure Vessels and Pressure Piping Systems

• Pumps, Tanks and Hydraulic Systems

Thermal Relief of Liquid Filled Vessels

• Chemical, Process and other Industrial Plants.

• Power Plant Auxiliary Systems

• Cryogenic and Industrial Gases

Air and Gas Compressors and Dryers

• Vacuum Relief

FEATURES:

• Wide Range of Materials and Options

• One Trim Design is Suitable for Steam, Air/Gas and Liquid Service

• High Capacity Full Nozzle Design

• Stainless Steel Springs

Integral Lift Stop

• Self-Aligning Pivoting Disc

• API 527 Seat Tightness, standard for all models

• Tuned Blow down-Short and Adjustable, reduces product losses.

Backpressure Tight Design Minimizes Fugitive Emissions

• CSA B51 CRN OG8547.5C

OPTIONS:

• Screwed Cap (standard), Packed Lift Lever

• Test gags

• Elastomer or PCTFE Soft Seat for Exceptional Seat Tightness

• High Temperature Alloy Springs for 550°F-800°F Service

• Special Cleaning Available

• European Pressure Equipment Directive compliant option (CE/PED)
